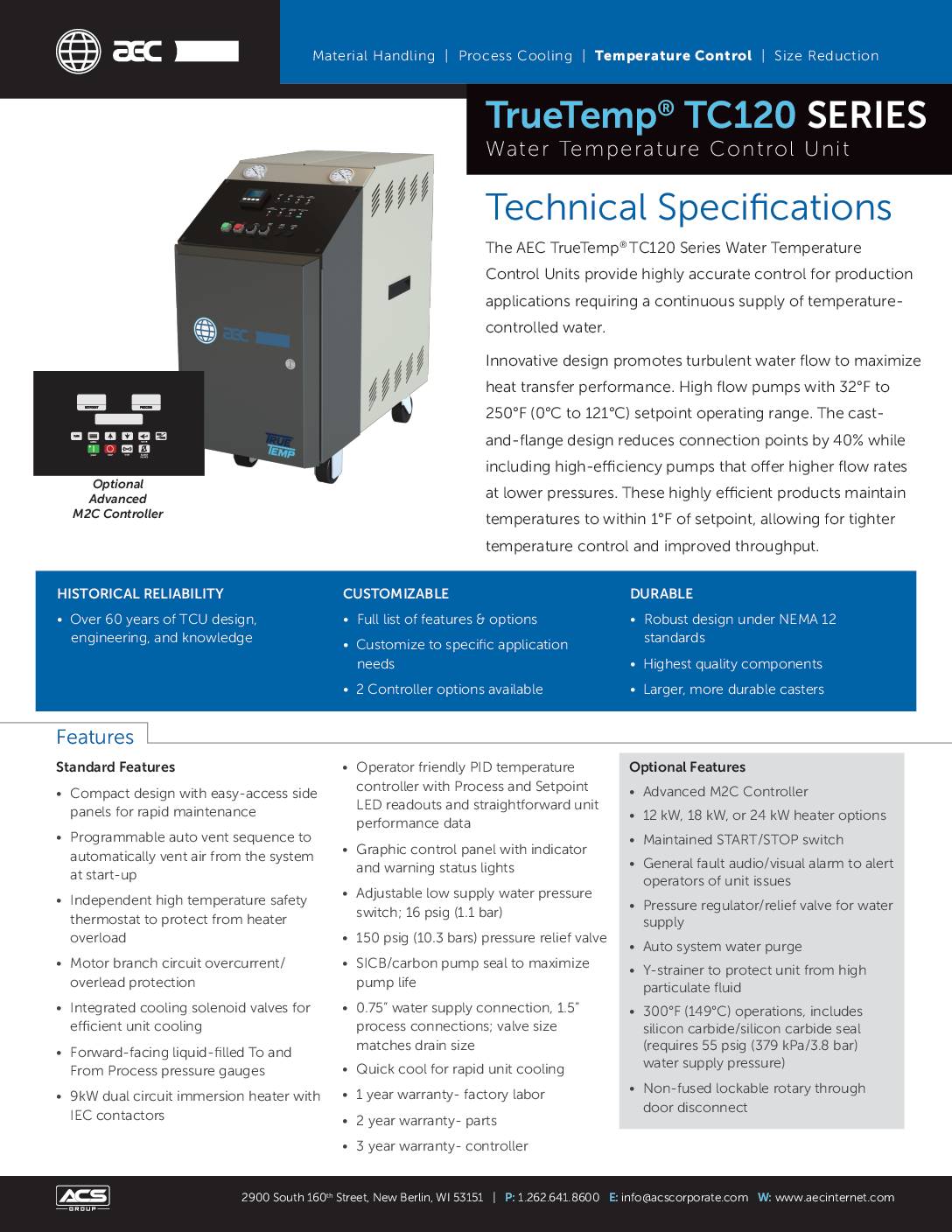

Technical Specifications
Product Brochure (English)
Product Brochure (Spanish) TrueTemp® TC120 Series Temperature Control Unit
The AEC TrueTemp® TC120 Series Water Temperature Control Units provide highly accurate control for production applications requiring a continuous supply of temperature-controlled water.
Innovative design promotes turbulent water flow to maximize heat transfer performance. High flow pumps with 32°F to 250°F (0°C to 121°C) setpoint operating range. The cast-and-flange design reduces connection points by 40% while including high-efficiency pumps that offer higher flow rates at lower pressures. These highly efficient products maintain temperatures to within 1°F of setpoint, allowing for tighter temperature control and improved throughput.
REQUEST A QUOTE Find a rep
Historical Reliability
- Over 60 years of TCU design, engineering, and knowledge
Customizable
- Full list of features & options
- Customize to specific application needs
- 2 Controller options available
Durable
- Robust design under NEMA 12 standards
- Highest quality components
- Larger, more durable casters
- Compact design with easy-access side panels for rapid maintenance
- Programmable auto vent sequence to automatically vent air from the system at start-up
- Independent high temperature safety thermostat to protect from heater overload
- Motor branch circuit overcurrent/overlead protection
- Integrated cooling solenoid valves for efficient unit cooling
- Forward-facing liquid-filled To and From Process pressure gauges
- 9kW dual circuit immersion heater with IEC contactors
- Operator friendly PID temperature controller with Process and Setpoint LED readouts and straightforward unit performance data
- Graphic control panel with indicator and warning status lights
- Adjustable low supply water pressure switch; 16 psig (1.1 bar)
- 150 psig (10.3 bars) pressure relief valve
- SICB/carbon pump seal to maximize pump life
- 0.75” water supply connection, 1.5” process connections; valve size matches drain size
- Quick cool for rapid unit cooling
- Advanced M2C Controller
- 12 kW, 18 kW, or 24 kW heater options
- Maintained START/STOP switch
- Closed loop heat exchanger, model varies with unit sizes
- General fault audio/visual alarm to alert operators of unit issues
- Pressure regulator/relief valve for water supply
- Auto system water purge
- Y-strainer to protect unit from high particulate fluid
- 300°F (149°C) operations, includes silicon carbide/silicon carbide seal (requires 55 psig (379 kPa/3.8 bar) water supply pressure)
- Non-fused lockable rotary through door disconnect
AEC is proud to offer Quick Ship options for the products listed below. Click on the product order button below to contact us only or call our Inside Sales Team at (262) 641-3987 for help selecting the right product or to place an order for any of the products listed below.
There are no Quick Ship products found from the current category.
Historical Reliability | Customizable | Durable
-
Controller Options Available
Eurotherm standard, M2C Option available
-
Pressure Gauges
Ergonomic positioning of the pressure gauges for easier viewing as stand-alone or stacked unit
